4x200W LED portable lighting tower

GTL lighting tower with LED is a unique portable lighting solution for a wide variety of jobs,events,and projects,indoors and out.Its compact design allows for ultimate versatility and ease of use.The LED lighting tower features heavy duty LED fixtures designed for high power light output and maximum durability under demanding operating conditions.It offers excellent beam power and color quality,lower power requirement, and greatly reduced maintenance and servicing needs as well as excellent resistance to vibration and impacts.

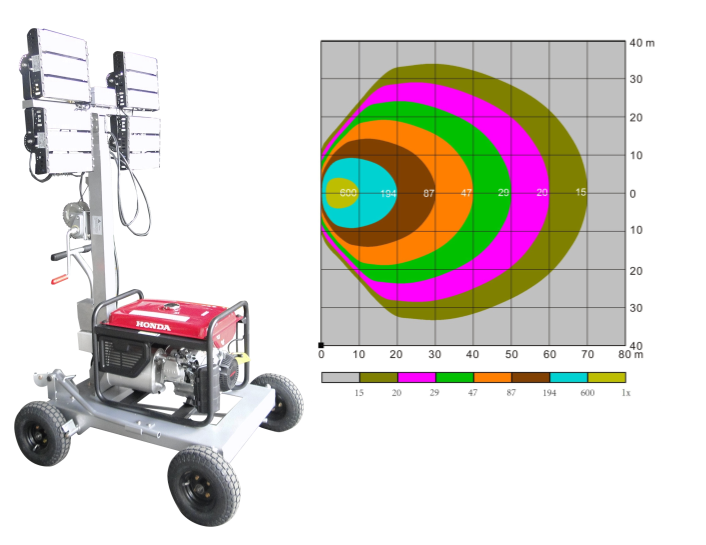

● Light Coverage Area

LED Light Tower

● Portable lighting tower Specifications


Model GB420
Voltage(V AC100-277
Amps(A) 8-2.89
Hz 50 & 60
Minimum Wattage Required 800 watt
Lamp Type LED
Total Luminous Flux(lm) 120,000
LED Service Lifetime(H) >50,000
LED Lamp Protection Grade IP67
Outriggers 2
Mast-Number Of Stages 3
Mast Type/Height ft.(mm) Manual Winch /13.8(4206)
Upper Position Working Dimension     L x W x H in.(mm) 58 x 57 x78 to165  (1460 x 1450 x 1980 to 4200)
Storage Dimension        L x W x H in.(mm) 46.9 x 35.2 x 72.4     (1190 x 900 x 1850)
Weight 140 KG
Turning Radius ft.(mm) 14.7(4500)

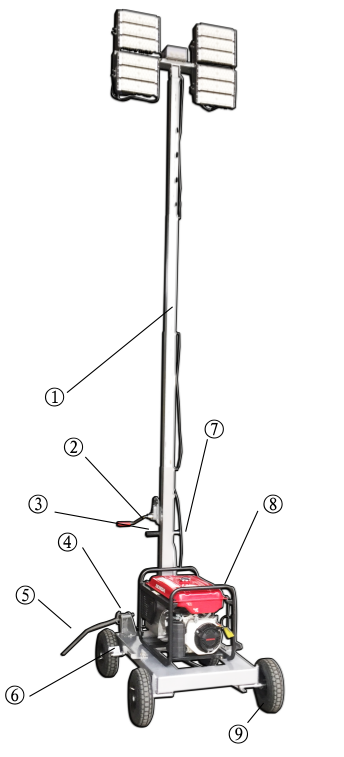

GTL Lighting Tower


①  Three-stage mast extends up to 13.8 feet

② Safety winch prevents mast from collapsing
③  Handle bar for easy transportation
④  Counterweights lock outriggers into place
⑤  Outriggers for stabilization
⑥  Parking brake

⑦  Lifting hook for easy transport

⑧  Optional generator

⑨  Pneumatic tires for easy maneuverability

GTL Portable Lighting Towers




Product Tags LED portable light tower          LED light tower          portable light tower          LED portable lighting tower          LED lighting tower          portable lighting tower
