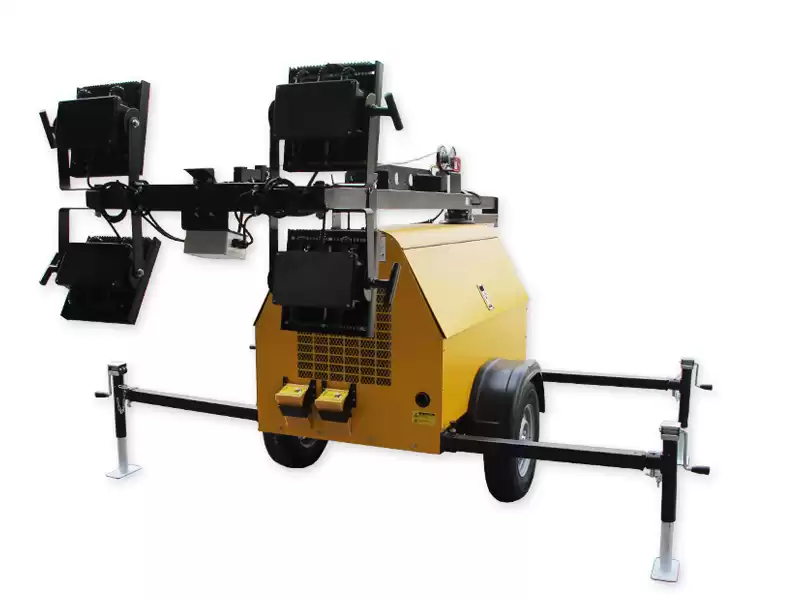

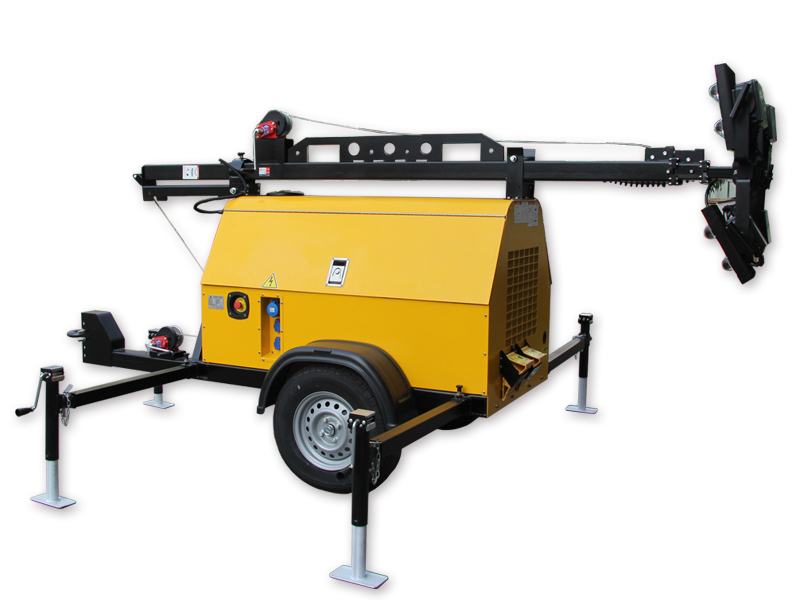

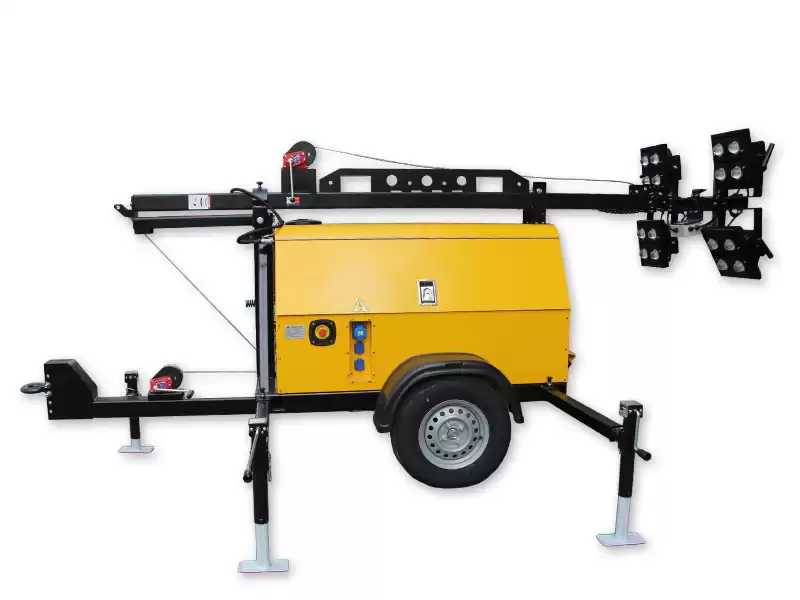

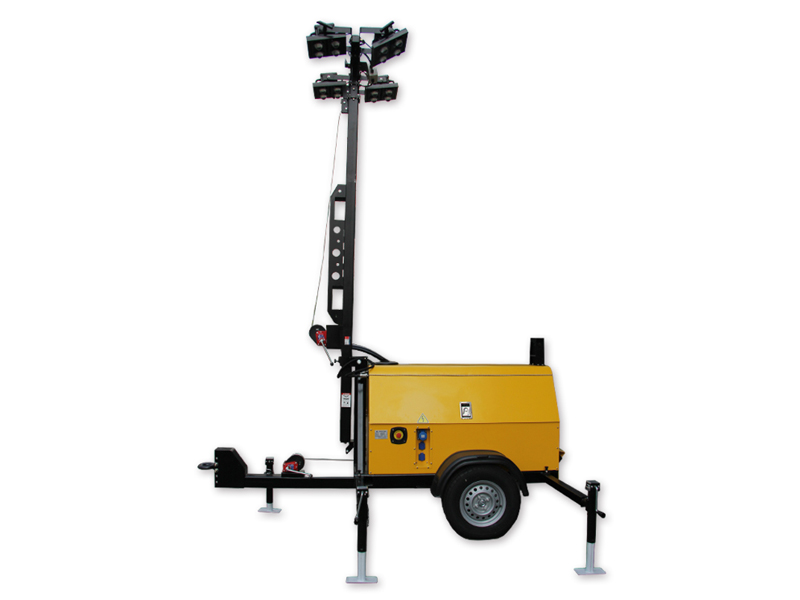

GTL portable lamp generator manual type led lighting tower
| 4x350W LED lamps(IP65); |
Manual mast made of galvanized steel; |
| Maximum height 9 m; |
Rotation 350°; |
| Fast and automatic deployment with safety system; |
140 litres fuel tank, 85 hours autonomy; |
| Noise level 60 dB(A) at 7 meters; |
Liquids bunding; |
| 4 deploying stabilizers. |
|
| |
4LT1400M9 LED |
Light coverLight coverage m2
(average 20 luxes) |
5300 |
| Lamps(Total Luminous Flux) |
LED(196000 lm) |
| Mast |
Manual Vertical |
| Performance Data |
| Rated Frequency |
Hz |
50/60 |
| Rated Voltage |
VAC |
230/240 |
| Rated Power (PRP) |
kW |
6/7 |
| Sound Pressure Level (LpA) at 7m |
dB(A) |
65 |
| Engine |
| Model |
|
Kohler KDW 1003 |
| Speed |
rpm |
1500/1800 |
| Rated Net Output (PRP) |
kW |
7.7/9.1 |
| Coolant |
|
Water |
| Number of cylinders |
|
3 |
| Alternator |
| Model |
|
BTO LT-132D/4 |
| Rated output |
kVA |
8/10 |
Insulation / Enclosure
protection |
class / IP |
H / 23 |
| Consumption |
| Fuel tank capacity |
litre |
110 |
| Fuel Autonomy |
hrs |
65 |
| Power Output |
| Auxiliary Power |
kW |
4.5 |
| Lights |
| Floodlights |
|
LED |
| Wattage |
W |
4 x 350 |
| Mast |
| Type |
|
Manual Vertical |
| Rotation |
degrees |
340 |
| Maximum Height |
m |
9 |
| Maximum Speed wind |
km / h |
80 |
| Enclosure and Trailer |
| Type |
|
|
| Enclosure |
|
|
| Dimensions and weigth |
| Dimensions in transport Fix Towbar (L x W x H) |
m |
4000*1480*1895 |
| Dry weight |
kg |
850 |
| Dimensions Fully Deployed(L x W x H) |
|
3041*2955*9000 |
Easy Operating
1.350°pivoting mast on bearings with clutch type braking system;
2. extractable, adjustable and reclinable stabilizers;
3.Easy electric regulations of the lamps radiation angle;
4.Folding handles stabilizing feet;
5.Forklift guides;
6.Central lifting eye.

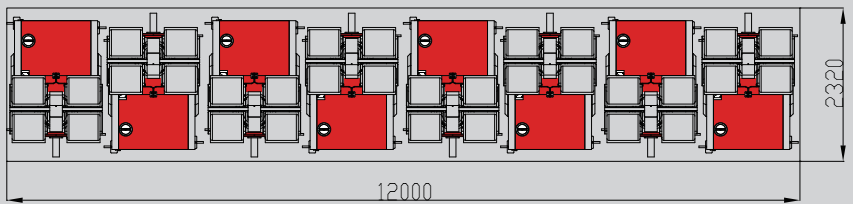

Container load & storing
Its design and reduced dimensions make the product easy to move, storing up to 8 units in a 40ft container.
