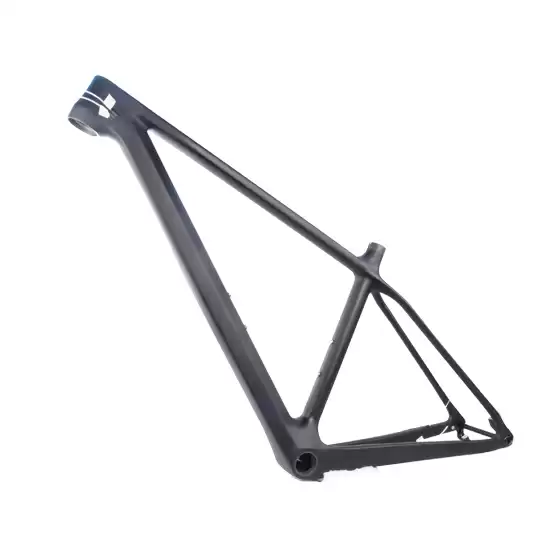

LightCarbon affordable Chinese carbon MTB frame
| Frame |
LightCarbon affordable Chinese carbon MTB frame
|
| Material |
High modulus Toray T700 carbon fiber |
| Size |
15'', 17'', 19'' (Small, Medium, Large) |

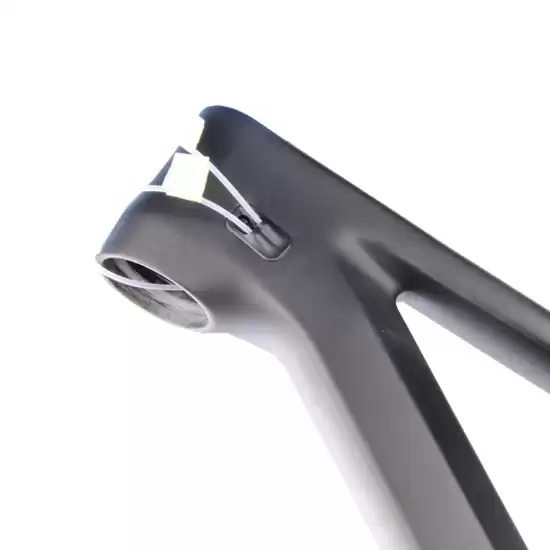

| Headtube |
Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB) |
| Weight |
1200g/Medium |
| Seatpost Diameter |
31.6mm(34.9 clamp)-Dropper seatpost insert length 15-140mm 17-190mm 19-200mm 20.5-200mm |

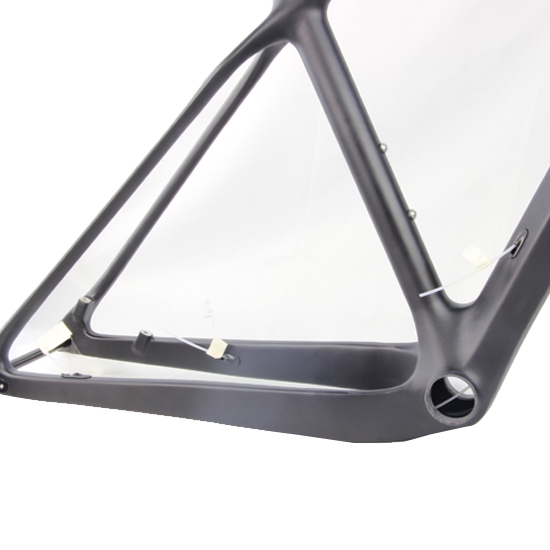

| Bottom Bracket |
Press Fit BB92 |
| Max Tire Clearance |
29er*2.35'' |
| Max Compatible Chainring |
34T |
| Brake Type |
Post Mount Disc brake 160mm |
| Front Derailleur |
Post mount |

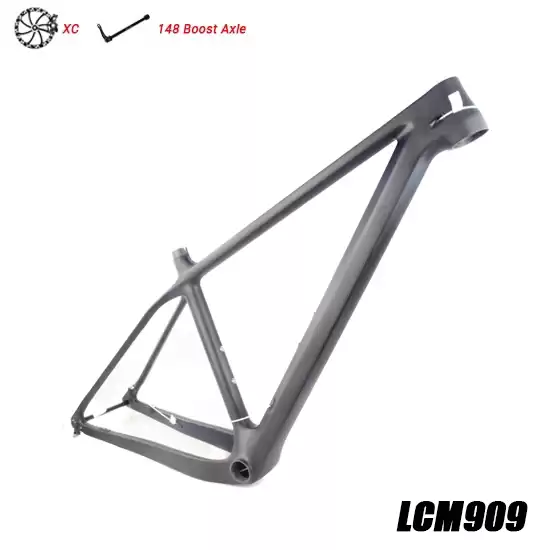

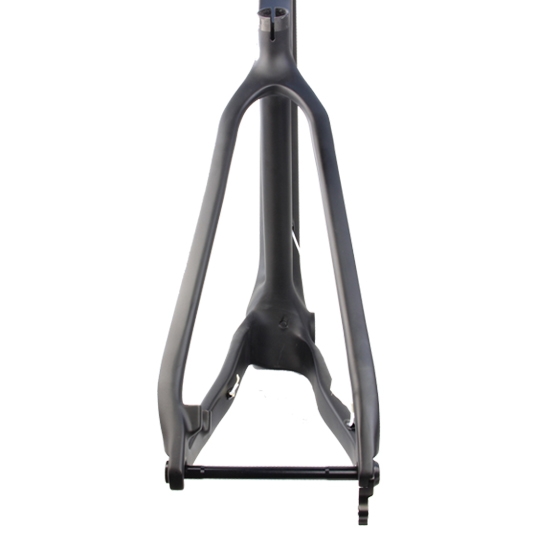

| Dropout |
Thru Axle 12*148mm boost |
| Test Standard |
ISO4210 |
| Warranty |
2 years |

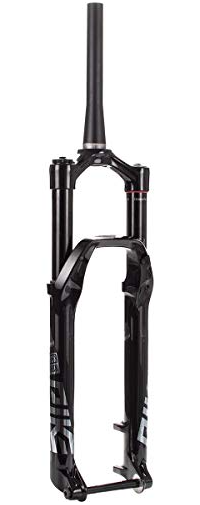

Compatible suspension front work recommended Rockshox Pike 2020-boost
Lightweight new boost carbon mtb bike geometry
| |
15“ |
17” |
19“ |
| SEATPOST INSERT LENGTH |
200mm |
220mm |
240mm |
| REACH |
376mm |
422mm |
451mm |
| TOP TUBE LENGTH, HORIZONTAL |
542mm |
595mm |
625mm |
| STACK |
591.3mm |
599.4mm |
610.4mm |
| WHEELBASE |
1048.6mm |
1099mm |
1129.5mm |
| CHAINSTAY LENGTH |
435mm |
435mm |
435mm |
| FRONT CENTER |
620.9mm |
670.9mm |
701.4mm |
| BB DROP |
61mm |
61mm |
61mm |
| BB HEIGHT |
316mm |
316mm |
316mm |
| SEAT TUBE ANGLE |
74° |
74° |
74° |
| HEAD TUBE ANGLE |
70° |
70° |
70° |
| SEAT TUBE LENGTH |
380mm |
431mm |
483mm |
| HEAD TUBE LENGTH |
90mm |
90mm |
95mm |
| BIKE STANDOVER HEIGH(29“*2.35”) |
740mm |
768.8mm |
807mm |
| FORK RAKE/OFFSET |
46mm |
46mm |
46mm |
| FORK LENGTH, FULL |
506mm |
506mm |
506mm |
| TRAIL |
89.5mm |
89.5mm |
89.5mm |

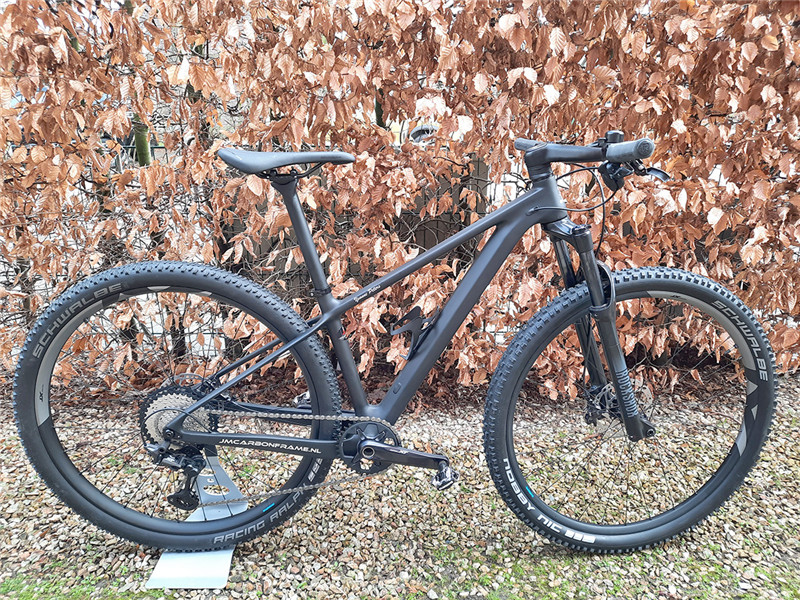

Complete bike show
