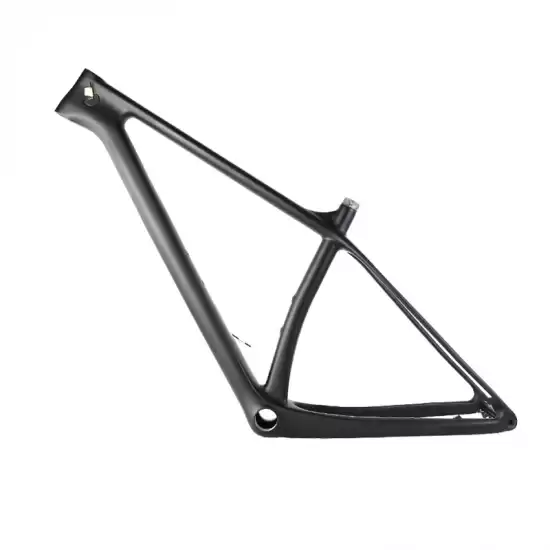

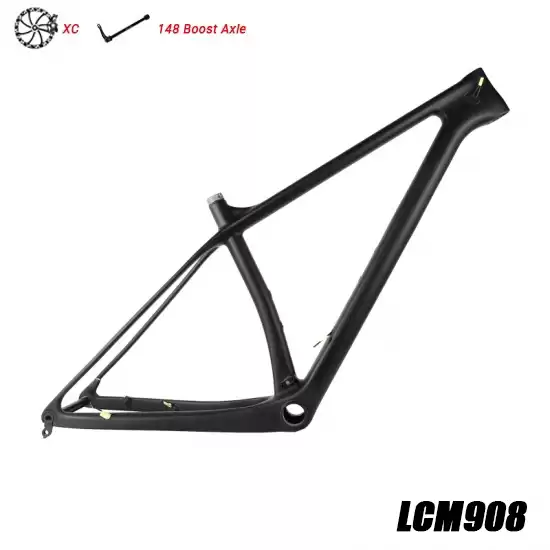

Lightweight New Boost Carbon Mtb Bike Frameset
| Frame |
Lightweight new boost carbon mtb bike frameset |
| Material |
High modulus Toray T700 carbon fiber |
| Size |
15'', 17'', 19'', 20.5'' (Small, Medium, Large, XLarge) |

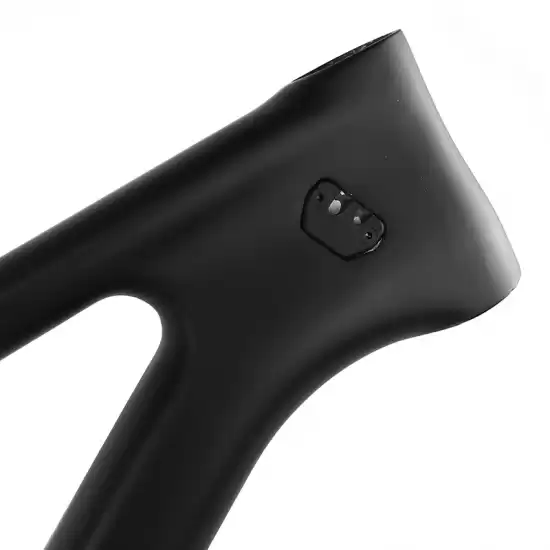

| Headtube |
Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB) |
| Weight |
1200g/Medium |

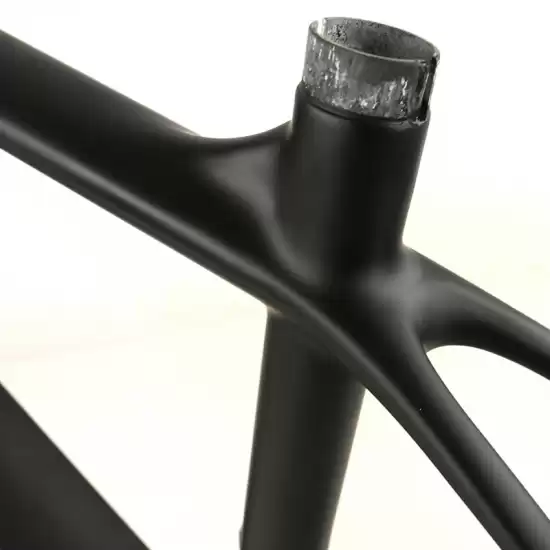

| Seatpost Diameter |
31.6mm(34.9 clamp)-Dropper seatpost insert length 15-140mm 17-190mm 19-200mm 20.5-200mm |

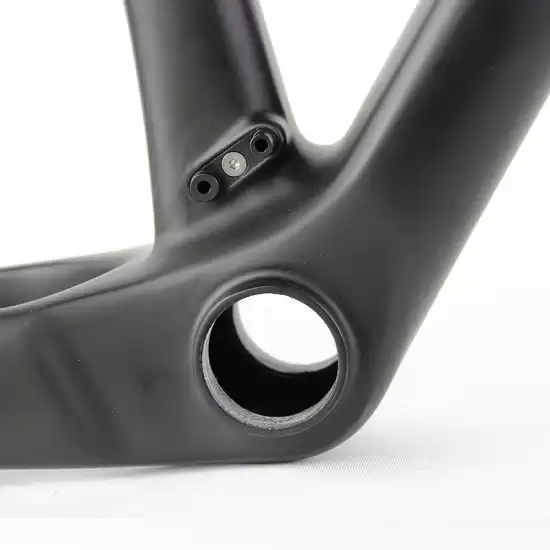

| Bottom Bracket |
Press Fit BB92 |
| Max Tire Clearance |
29er*2.35'' |
| Max Compatible Chainring |
36T |
| Brake Type |
Post Mount Disc brake 160mm |
| Front Derailleur |
Post mount |
| Dropout |
Thru Axle 12*148mm boost |
| Test Standard |
ISO4210 |
| Warranty |
2 years |

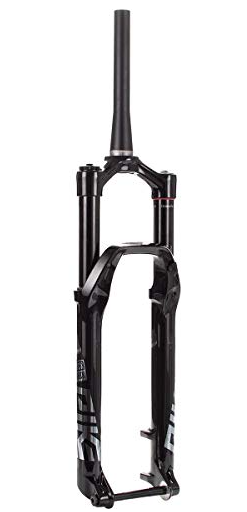

Compatible suspension front work recommended Rockshox Pike 2020-boost
Lightweight new boost carbon mtb bike geometry
| |
15“ |
17” |
19“ |
20.5“ |
| SEATPOST INSERT LENGTH |
140mm |
190mm |
200mm |
200mm |
| REACH |
430.7mm |
450.7mm |
467.7mm |
484.8mm |
| TOP TUBE LENGTH, HORIZONTAL |
580mm |
600mm |
620mm |
640mm |
| STACK |
600.4mm |
600.4mm |
609.8mm |
619.1mm |
| WHEELBASE |
1127.8mm |
1147.8mm |
1168.2mm |
1188.8mm |
| CHAINSTAY LENGTH |
445mm |
445mm |
445mm |
445mm |
| FRONT CENTER |
689.6mm |
709.5mm |
729.9mm |
750.4mm |
| BB DROP |
60mm |
60mm |
60mm |
60mm |
| BB HEIGHT |
315mm |
315mm |
315mm |
315mm |
| SEAT TUBE ANGLE |
72.5° |
72.5° |
72.5° |
72.5° |
| HEAD TUBE ANGLE |
69.5° |
69.5° |
69.5° |
69.5° |
| SEAT TUBE LENGTH |
390mm |
440mm |
480mm |
530mm |
| HEAD TUBE LENGTH |
105mm |
105mm |
115mm |
125mm |
| BIKE STANDOVER HEIGH(29“*2.35”) |
730mm |
762.4mm |
797.7mm |
812.2mm |
| FORK RAKE/OFFSET |
51mm |
51mm |
51mm |
51mm |
| FORK LENGTH, FULL |
490mm |
490mm |
490mm |
490mm |
| TRAIL |
85.4mm |
85.4mm |
85.4mm |
85.4mm |

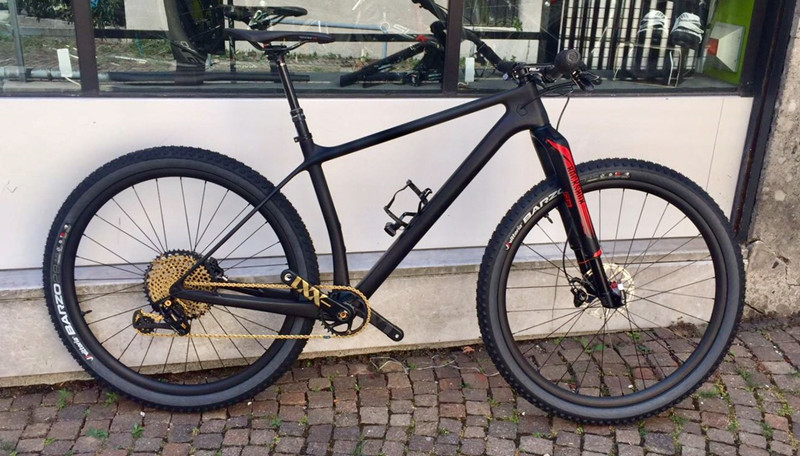

Complete Bike Frame Show
