Fixed Triangle Solar Panel Roof Mounts



Fixed solar panel mounts can be used for roof and ground.


  • Snow Load<1.4KN/M2
  • Wind Load<60M/S
  • Warranty10 years and 25 years service time
  • MaterialAL6005-T5
  • Tilt Angle <60 degree
  • Installation SiteRoof or Ground

Fixed solar panel tilt mount kit





Fixed triangle frame system adapts to concrete flat rooftop, which can use expansion bolt on concrete bolck, and then install on concrete flat roof without damage the roof.

It also can used on metal rooftop, useing metal clamp to connect triangle frame to the roof.

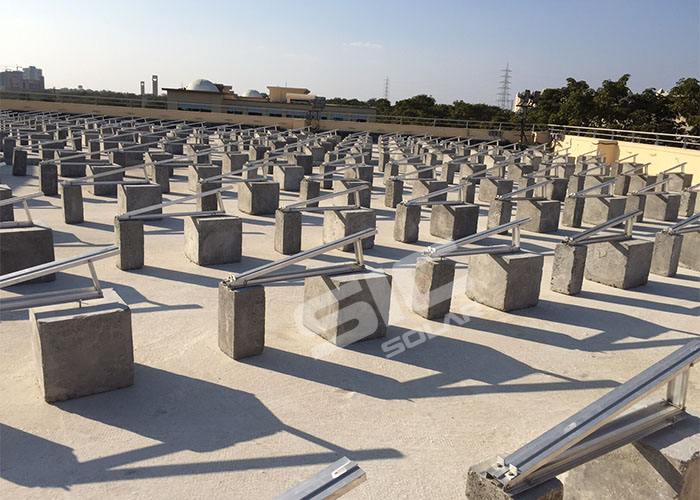

Expansion bolt with concrete bolck solution

Diy solar panel tilt mount

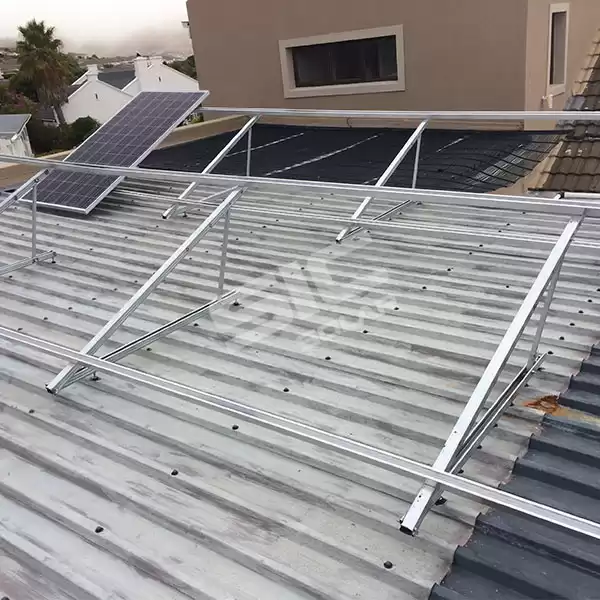

Metal clamp solution

Solar panel tilt mount





Category: Flat roof mounting



Installation Site

Roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5 & Stainless Steel 304

Color

Natural or Customized

Anticorrosive

Anodized aluminum & stainless steel

Warranty

10 years and 25 years service time



Fixed tilt racking



Solar tilt frame

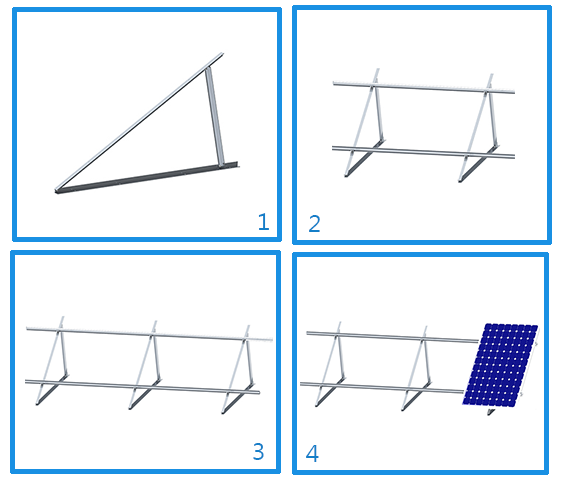

1. Put fixed triangle frame on the flat surface.

2. Fix the rail on the fixed triangle frame.

3. Fix the mid clamp between panels, end clamp on the panel edge.

4. Finished.





☆ Easy to use - Highly pre-assembled components make the installation more quickly and easily.

☆  Safety - The whole structure have been strictly tested to stand up to the extreme weather

☆ High Quality - Structure have been strictly controlled to ensure 10 years warranty & 25 Years lifetime.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list





Triangle frames could be packed into cartons with plywood pallet. Steel pallet could be offered if needed.



package for solar panel mount triangle frame
