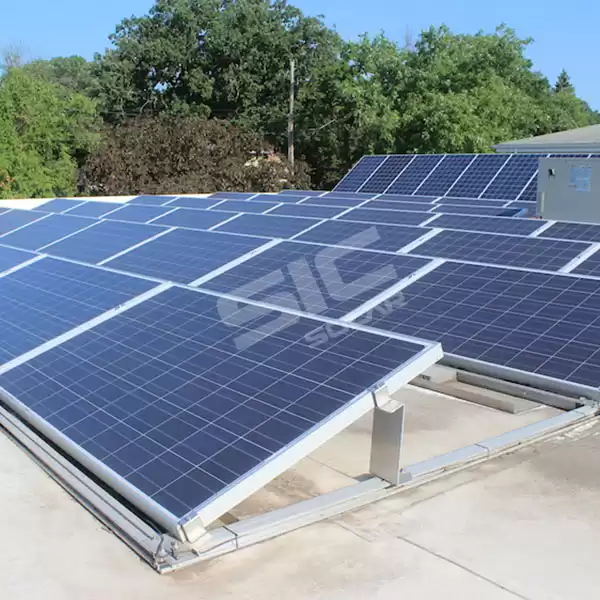

Flat roof ballasted rooftop solar racking
Flat roof ballasted rooftop solar mounting is mainly used for flat ground and concrete roof, which do not harm the installation surface. This mounting only contain three components: Mid clamp, End clamp and Main ballast frame. The whole installation is very quick and easy.
Category: Flat roof mounting
|
Installation Site
|
Flat roof or Ground
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
Hot dipped Galvanized steel Q235B, Aluminum 6005-T5 & Stainless Steel 304
|
|
Color
|
Natural or Customized
|
|
Anticorrosive
|
Hot dipped Galvanized steel & stainless steel
|
|
Warranty
|
10 years and 25 years service time
|

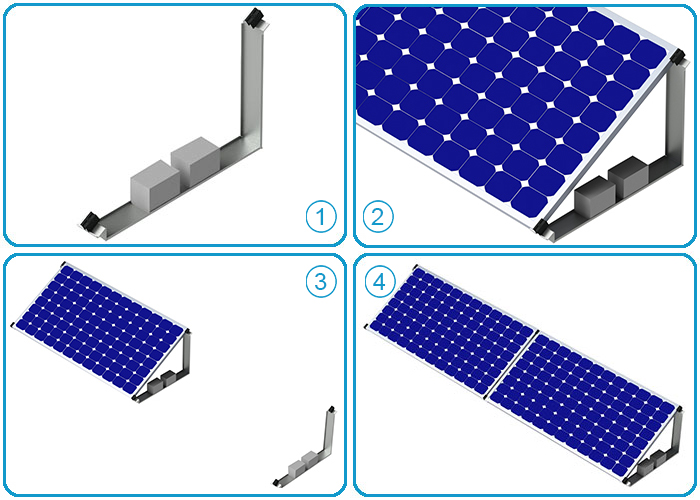

1. Put main ballast frame on the flat surface with ballast.
2. Fix the end clamp on the panel edge.
3. Fix the mid clamp between panels.

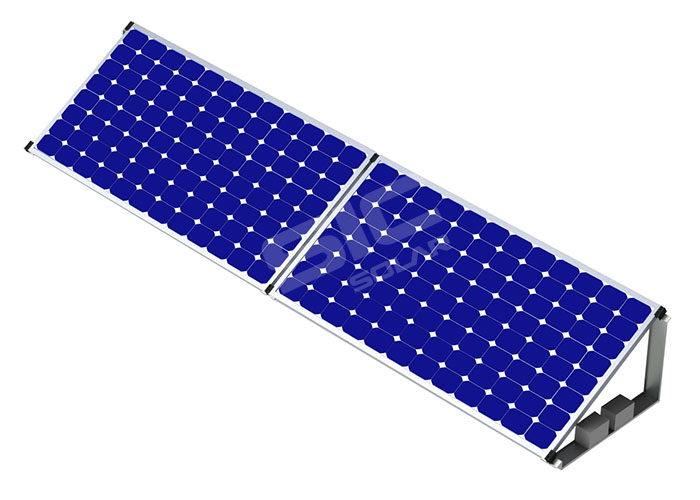

4. Finished.
Advantages as follow:
☆ Easy to use - Only 3 components: mid clamps, end clamps and Main Ballast Frame.
☆ High Durability – Best steel Ensure 10 years warranty and 25 years service time.
☆ Hot dipped galvanized Steel Q235B could meet high strength request, which is also anti-corrosion.
☆ Customized Mid clamps and end clamps could be pushed into the main ballast frame easily.
☆ 10-30 degree available.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
