HDPE plastic solar ballast roof mount



HDPE plastic solar ballast mount suit for any flat surface, and easy for installation.


  • MaterialHDPE
  • Tilt Angle18 degree
  • Installation SiteFlat surface

HDPE plastic fixed tilt racking





HDPE plastic solar Ballasted racking system is suitable for flat surface, which will suitable for any flat surface and not damaged to surface. Fast and easy installation will help installer to save more installation time.



Plastic ballasted solar racking system





Category:Flat roof mounting



Installation Site

Flat surface

Material Hdpe
Filler Gravel, stone
Weight of filler 70KGS
Content Plastic pan*1, end clamp*4, screw*4
Angle of installation 18°

Life time

15 years

Dimension

1024*660*426 mm

Net weight 4.2KGS





Only two components, Plastic Ballast pan and end clamp.

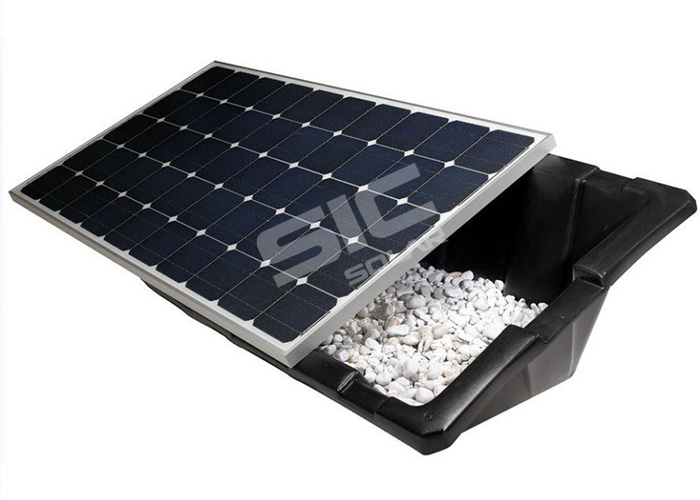

         HDPE black solar ballast mount



☆Easy to use- Only two components, Plastic Ballast pan and end clamp.

☆ Flexible position planning - Plastic ballast frame could be extended according to your installation site.

☆ Ballast design - Suit for any flat surface without damaging any surface

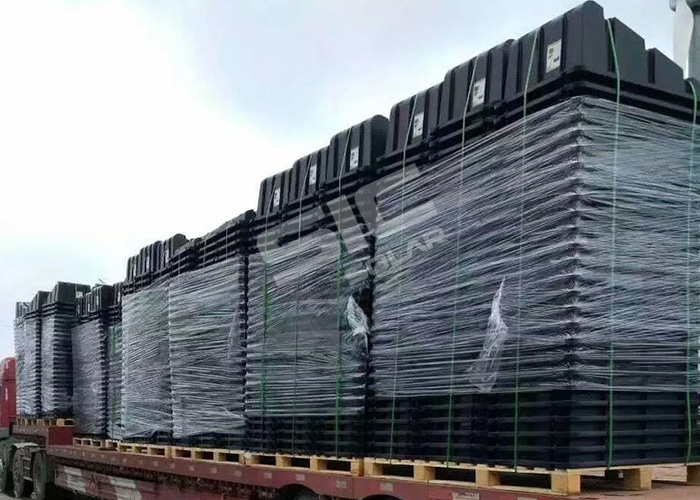

Package for HDPE plastic solar ballast mount





Q1: Could the tilt angle be changed? Like reduced to 15°?
Sorry, the mold is fixed and the solar angle can not be changed.

Q2: Is the HDPE mount have request on solar panel size?
Yes, HDPE mount have request on the panel width and thickness. But it do not request the panel length.
Panel Width = 990 or 992mm, Panel Thickness=35 or 40mm

Q3: Does the price for the item comprehensive of clamps and any other material needed to mount the system?
Yes, The price included the clamps to mount panels, which is complete, except for the ballast gravel.

Q4: What will be excluded from the final DDU quotation (ex. customs clearance / european due taxes)?
With DDU terms, only the import taxes and VAT are not included, 6.5% for european countries.
