Flat Roof Ballasted Mount

Project Site:	Flat Roof
Tilt type:	Concrete or Gravel
Max Building Height:	Up to 20m
Wind Load:	88m/s
Snow Load:	1.4kn/㎡
Applicable Module:	Frame / frameless, crystalline/ thin film module
Module Orientation:	Landscape
Standard:	AS/NZS 1170, MCS, JIS &SGS
Material:	Stainless steel 304, Al6005-T5

Product Features

1. Flat roof ballasted mount structures are widely used for both crystalline and thin film modules

2. Easy & quick installation

3. Few components and highly assembled

4. All flat roof components are made with high quality aluminum & stainless steel

5. The arrays are connected together

System Overview

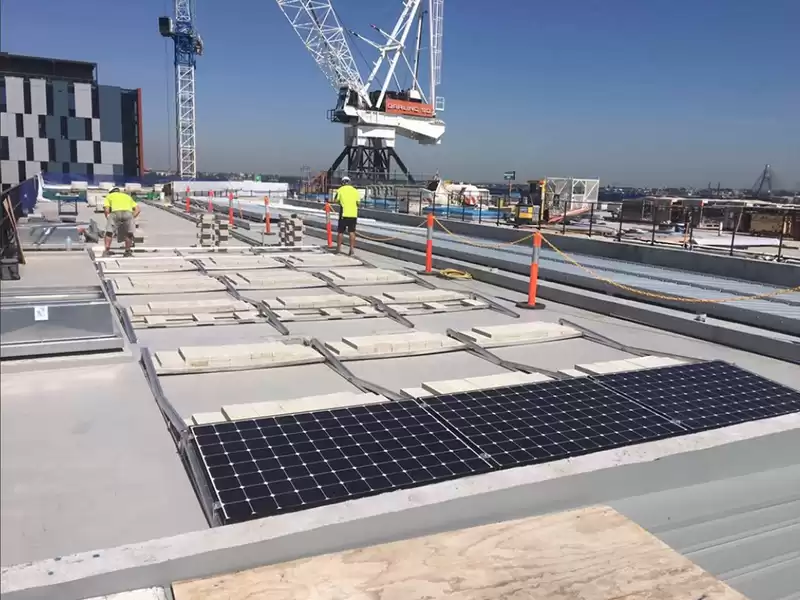

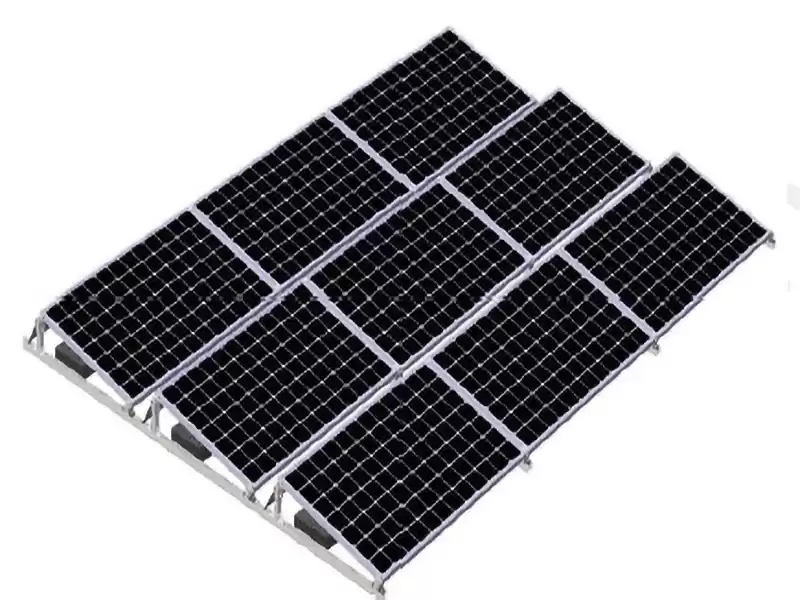

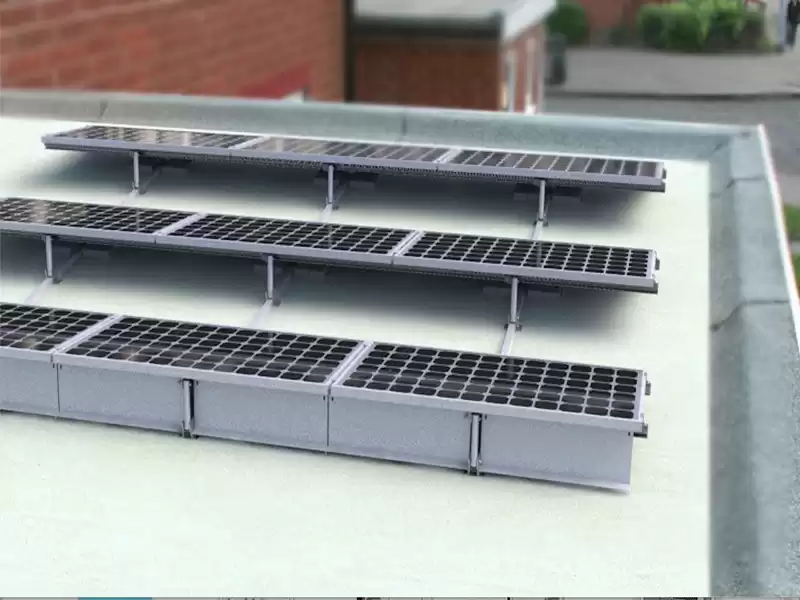

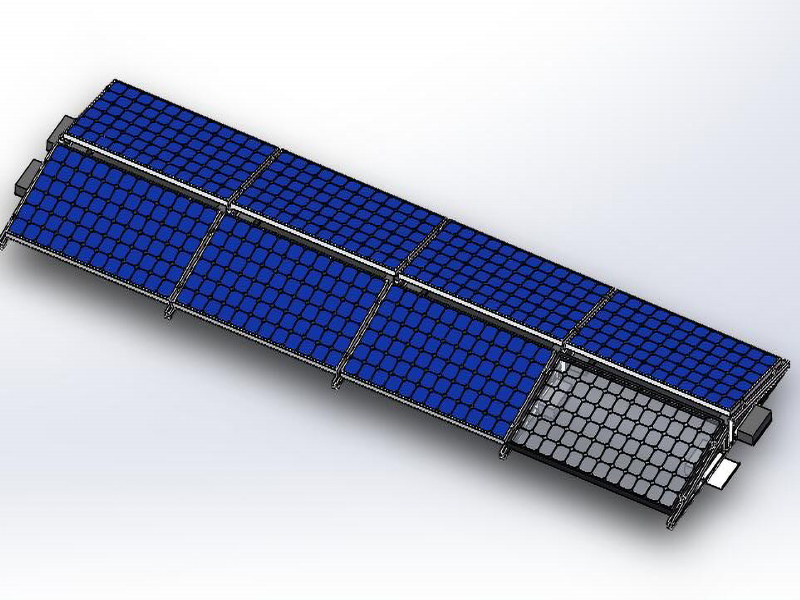

Flat roof ballasted mount structures

Key Components

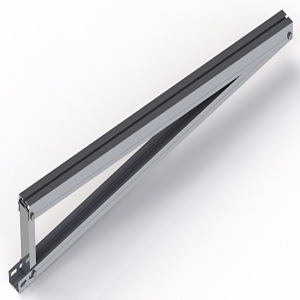

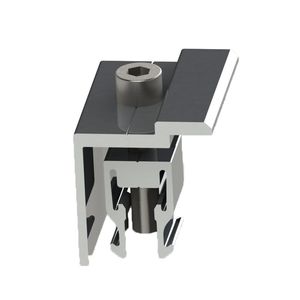

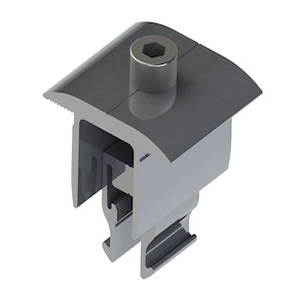

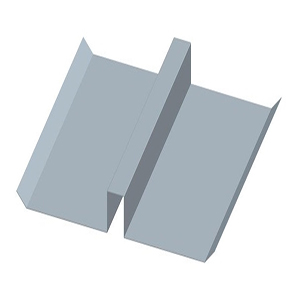

Triangle Bracket	Mid Clamps	End Clamps	Ballasted Pan
