Triangle Flat Roof Mounting System

Project Site:	Flat Roof, Pitched Roof, Free open Terrain
Slope of roof:	Up to 60°
Max Building Height:	Up to 20m
Wind Load:	88m/s
Snow Load:	1.4kn/㎡
Applicable Module:	Frame / frameless, crystalline/ thin film module
Module Orientation:	Landscape or Portrait
Standard:	AS/NZS 1170, MCS, JIS &SGS
Material:	Stainless steel 304, Al6005-T5

Product Features

1. Triangle flat roof mounting structures are widely used for both crystalline and thin film module

2. Easy & quick installation

3. Few components and no more than two kinds of tools in whole system fixation

4. All flat roof components are made with high quality aluminum & stainless steel

System Overview

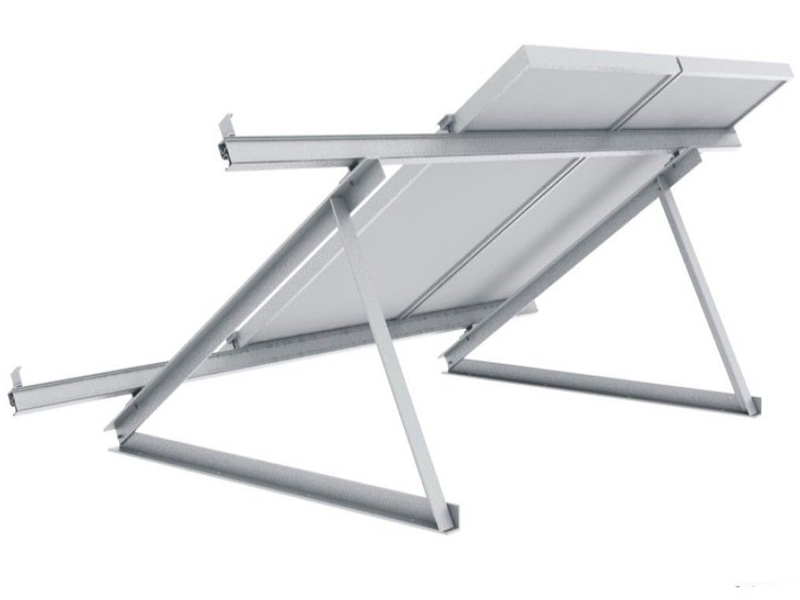

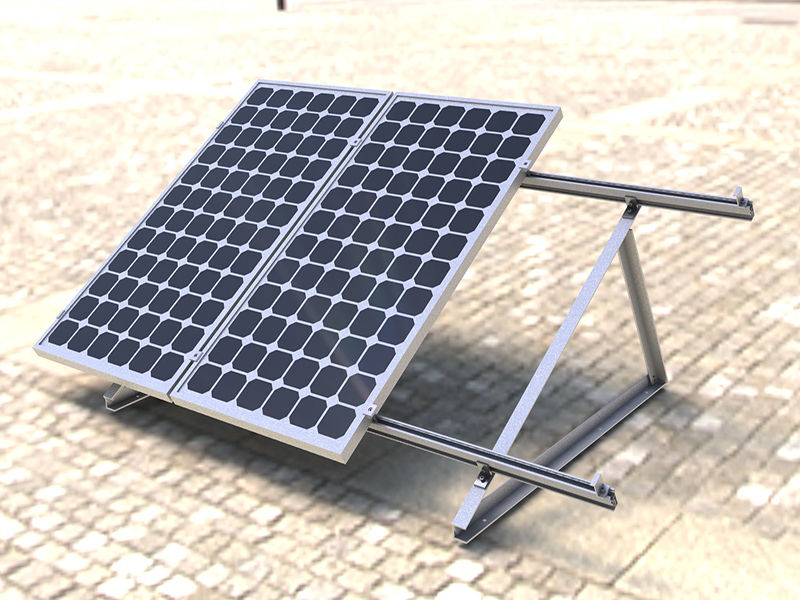

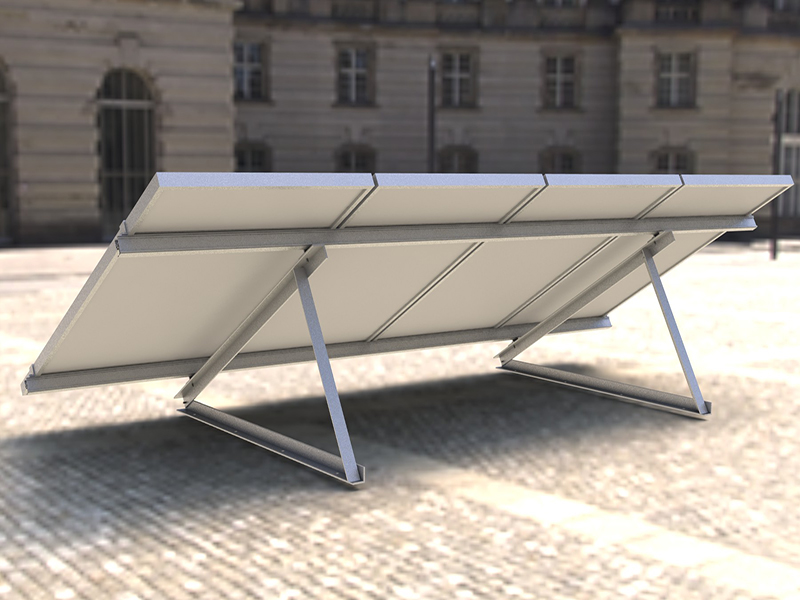

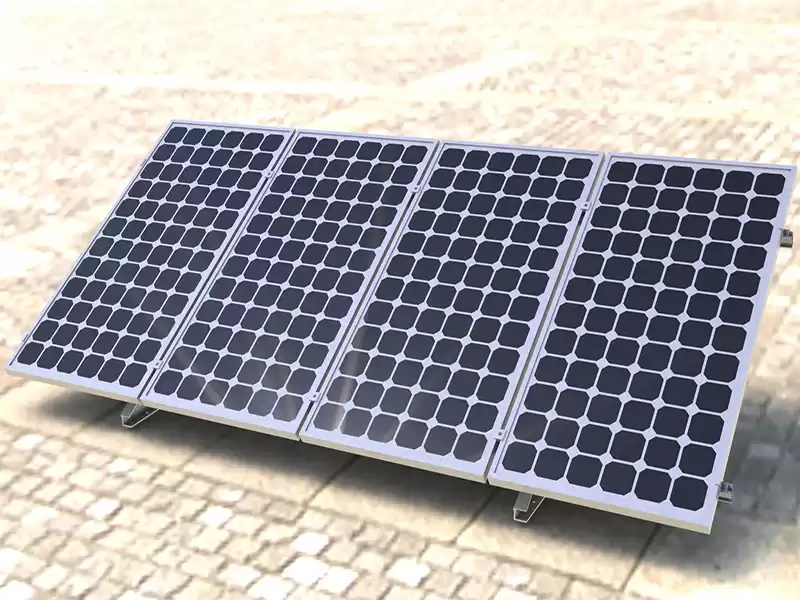

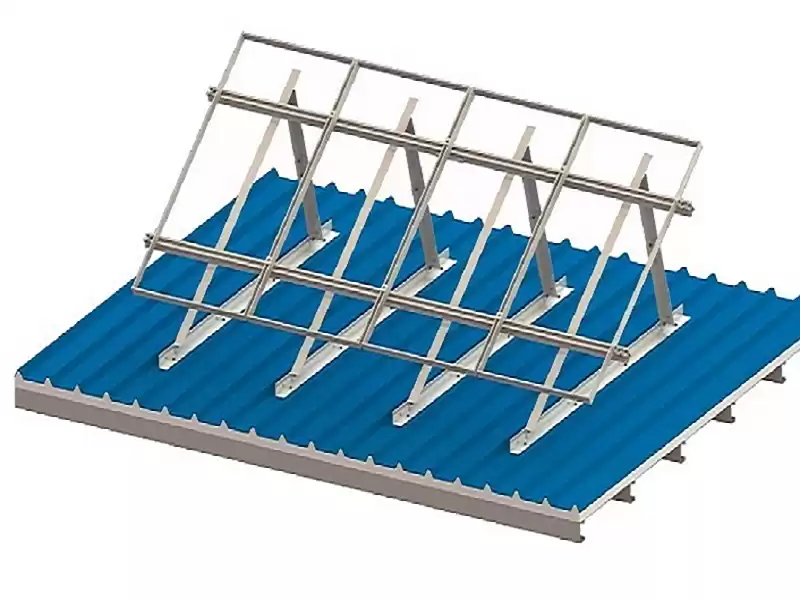

Triangle flat roof mounting structures

Key Components

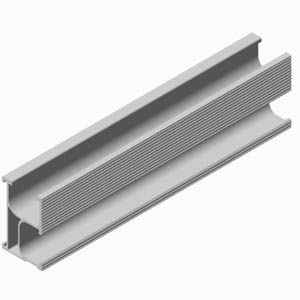

Rail in Customized Length

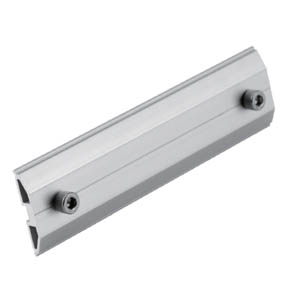

Rail Connectors

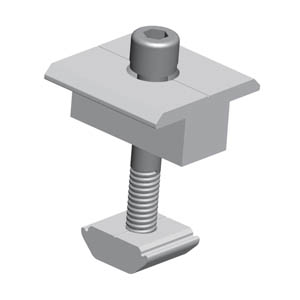

Mid Clamps

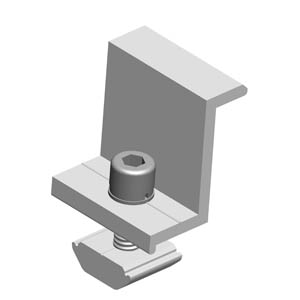

End Clamps

Triangle Brackets
