Pitched Roof Solar Mounting Brackets

Project Site:	Sloped roof tile
Tile type:	Most tile roof
Slope of roof:	Up to 60°
Max Building Height:	Up to 20m
Wind Load:	88m/s
Snow Load:	1.4kn/㎡
Applicable Module:	Frame / frameless, crystalline/ thin film module
Module Orientation:	Landscape or Portrait
Standard:	AS/NZS 1170, MCS, JIS &SGS

Product Features

1. Pitched tile roof mounting structures are widely used for both crystalline and thin film module

2. Easy & quick installation

3. Few components and no more than two kinds of tools in whole system fixation

4. All pitched roof components are made with high quality aluminum & stainless steel

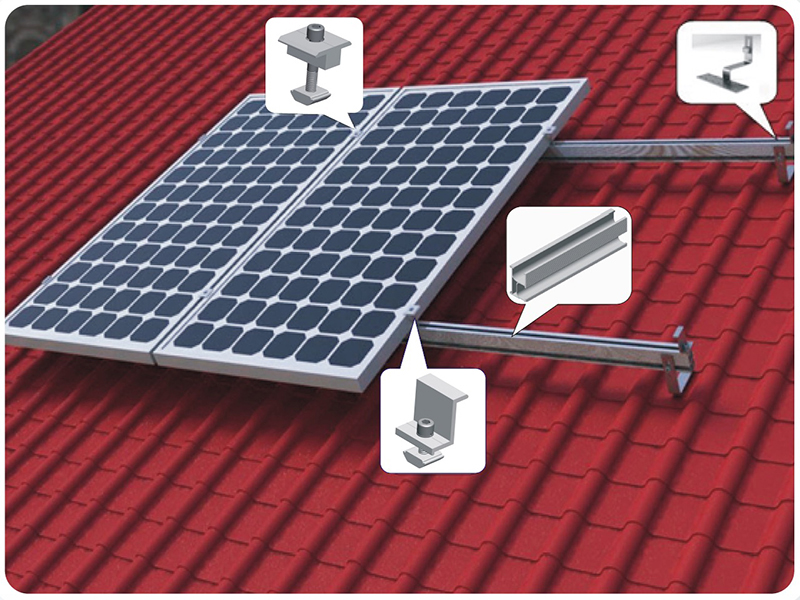

System Overview

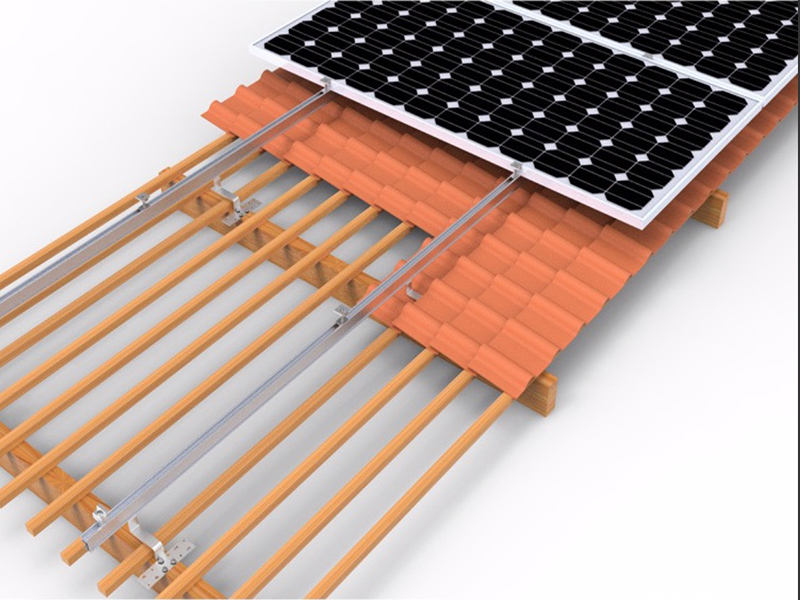

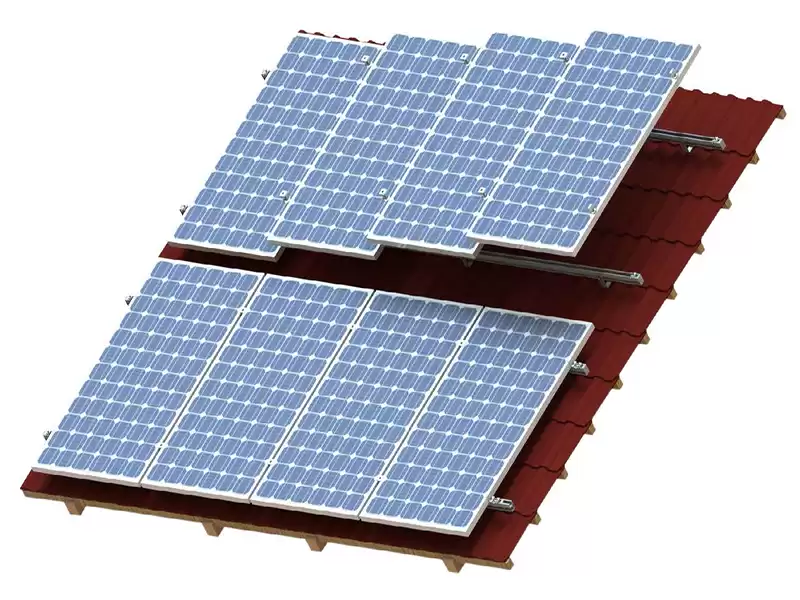

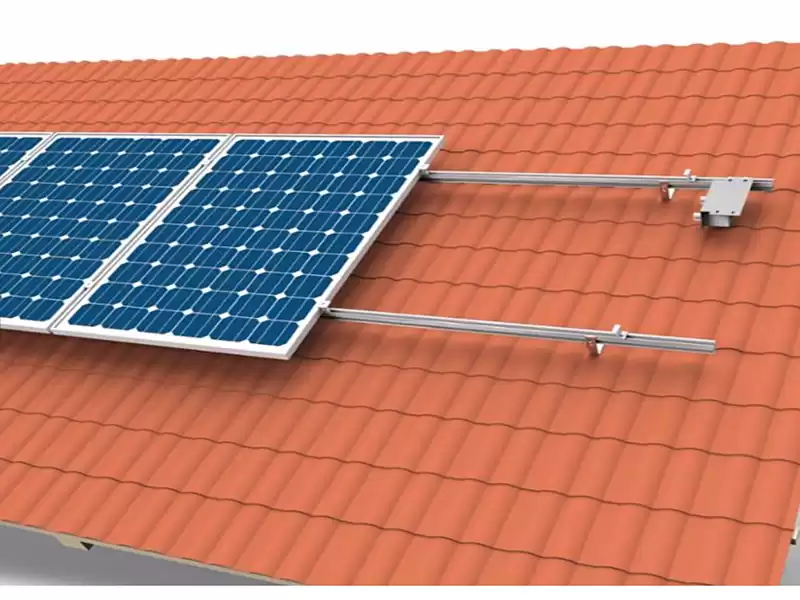

Pitched tile roof mounting structures

Key Components

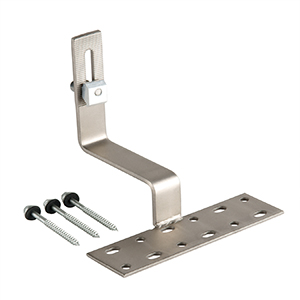

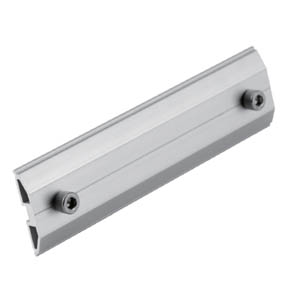

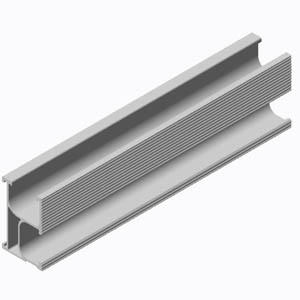

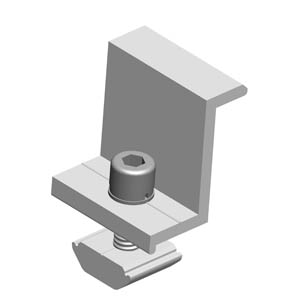

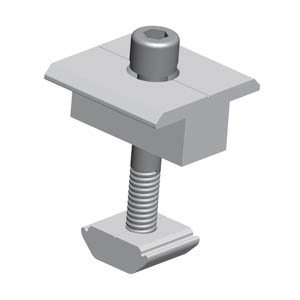

Rail in Customized Length	Rail Connectors	Mid Clamps	End Clamps	Roof Hook
