Tin Roof Mounting System

Project Site:	corrugated or trapezoidal sheet metal roof
Slope of roof:	Up to 60°
Max Building Height:	Up to 20m
Wind Load:	88m/s
Snow Load:	1.4kn/㎡
Applicable Module:	Frame / frameless, crystalline/ thin film module
Module Orientation:	Landscape or Portrait
Standard:	AS/NZS 1170, MCS, JIS &SGS
Material:	Stainless steel 304, Al6005-T5

Product Features

1. Pitched Tin Roof Mounting Structures are widely used for both crystalline and thin film module

2. Easy & quick installation

3. Only 3-4 kinds of components and no more than two kinds of tools in whole system fixation

4. All pitched roof components are made with high quality aluminum & stainless steel

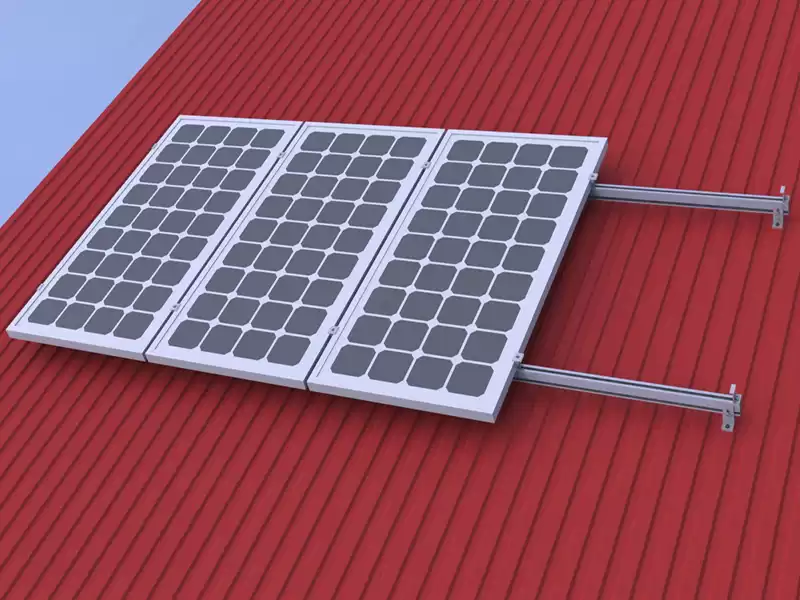

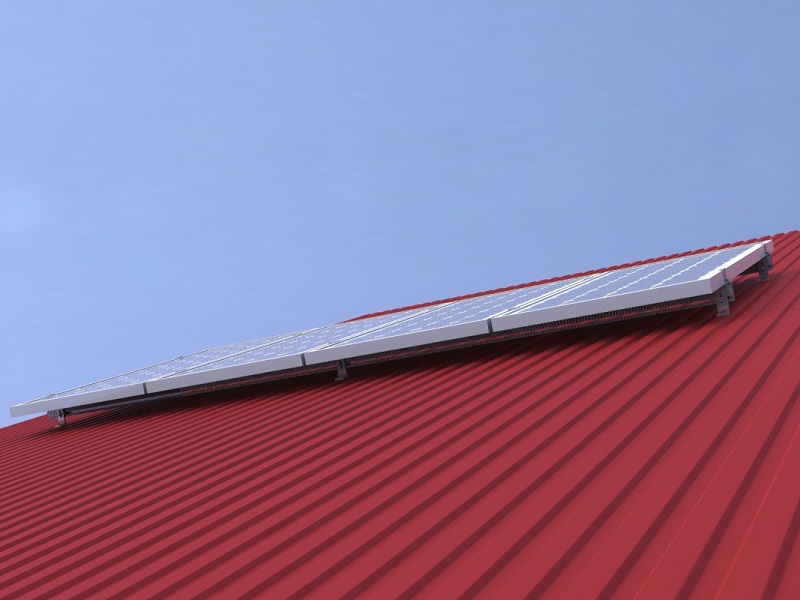

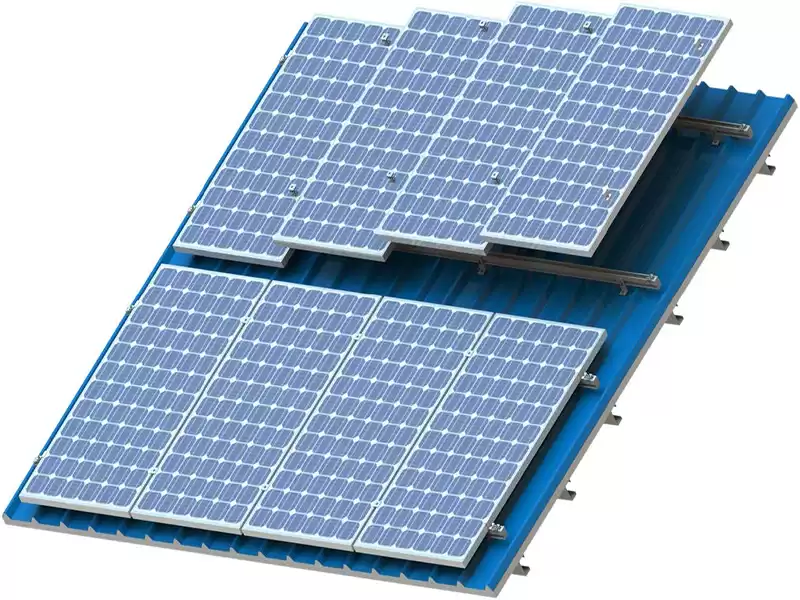

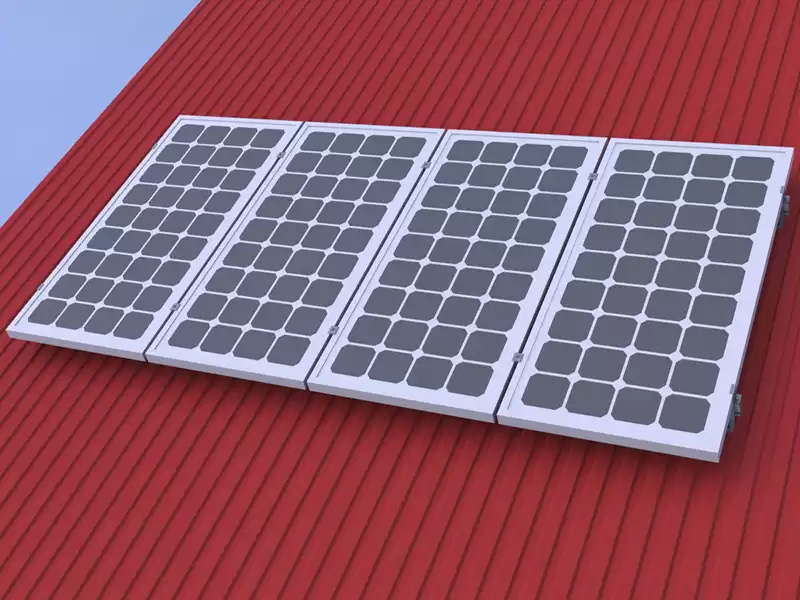

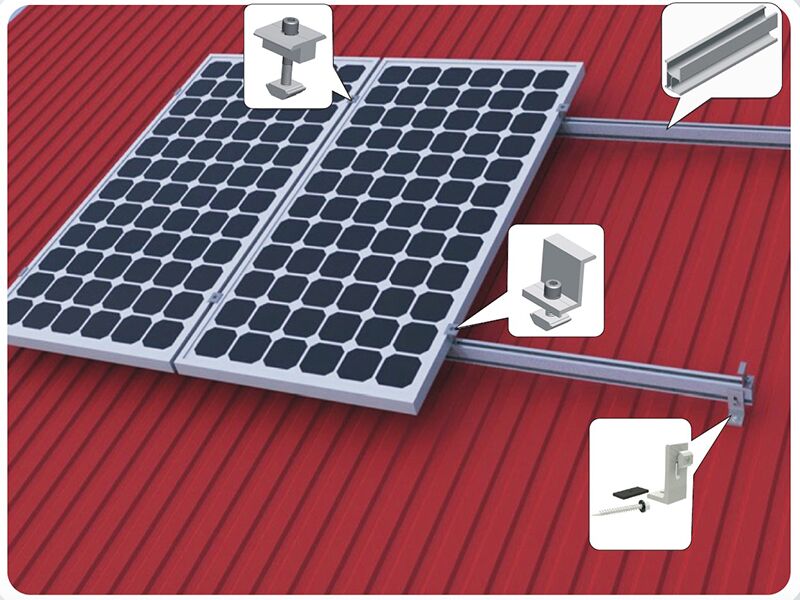

System Overview

Pitched Tin Roof Mounting Structures

Key Components

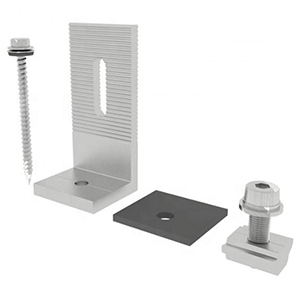

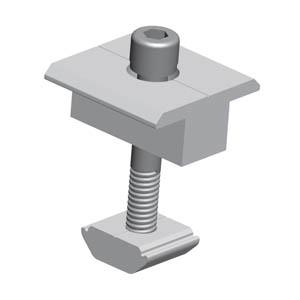

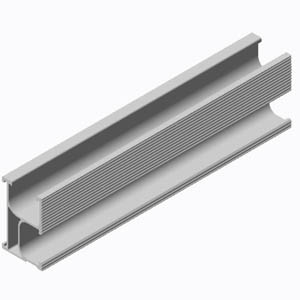

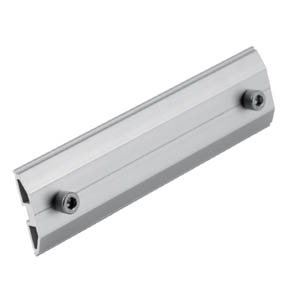

Rail in Customized Length	Rail Connectors	Mid Clamps	End Clamps	L Foot
