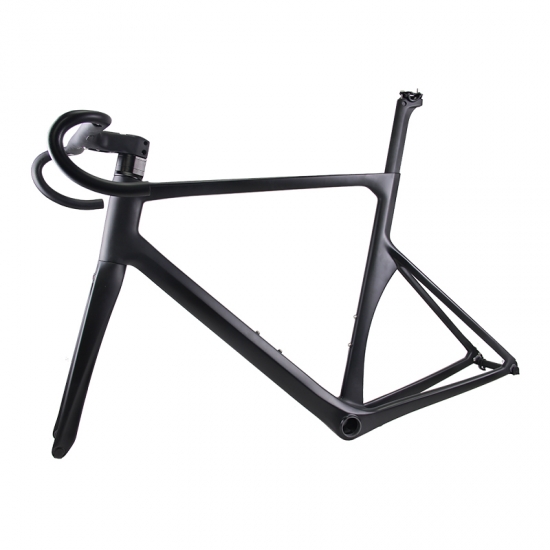

Lightcarbon New Racing Carbon Road Integrated Frame
|
Frame
|
Lightcarbon New Racing Carbon Road Integrated Frame
|
|
Material
|
High modulus Toray T700 carbon fiber
|
|
Size
|
480, 510, 540, 570 mm
|
|
Fork
|
Lightcarbon specify carbon fork
|
| Handlebar width |
400/420/440mm |
| Stem |
90/100/110/120mm |
|
Headtube
|
Straight 1 1/2" head tube
|
|
Weight
|
1150g/54cm, Fork 390g
|
|
Seatpost length
|
specify 350mm seatpost
|
|
Bottom bracket
|
BB86
|
|
Max tire clearance
|
700*28c
|
|
Brake mount type
|
Caliper brake (direct mount)
|
| Dropout |
Front 9*100mm QR Rear 9*130mm QR |
| Groupset |
Recommended install elcetronic shifting groupset |
| Handlebar&stem |
Compatible with handlebar HBR07 ONLY |
| Test Standard |
ISO4210 |
| Warranty |
2 years |
LightCarbon integrated road frame geometry
| |
480 |
510 |
540 |
570 |
| SEATPOST INSERT LENGTH |
210mm |
250mm |
270mm |
280mm |
| REACH |
369mm |
392.8mm |
395.4mm |
404.3mm |
| TOP TUBE LENGTH, HORIZONTAL |
525mm |
550mm |
570mm |
590mm |
| STACK |
524mm |
533mm |
553.8mm |
571.2mm |
| WHEELBASE |
980mm |
985mm |
985.5mm |
1002.6mm |
| CHAINSTAY LENGTH |
405mm |
405mm |
405mm |
405mm |
| FRONT CENTER |
561.6mm |
586.6mm |
590.2mm |
604.2mm |
| BB DROP |
68mm |
68mm |
68mm |
68mm |
| BB HEIGHT |
372mm |
372mm |
372mm |
372mm |
| SEAT TUBE ANGLE |
73.5° |
73.5° |
72.5° |
72° |
| HEAD TUBE ANGLE |
72.5° |
73° |
73.5° |
73.5° |
| SEAT TUBE LENGTH |
480mm |
510mm |
540mm |
570mm |
| HEAD TUBE LENGTH |
120mm |
130mm |
150mm |
170mm |
| BIKE STANDOVER HEIGHT(700C*28C) |
756mm |
776mm |
800mm |
822mm |
| FORK RAKE/OFFSET |
45mm |
45mm |
45mm |
45mm |
| FORK LENGTH, FULL |
370mm |
370mm |
370mm |
370mm |
| TRAIL |
58.4mm |
58.4mm |
53.8mm |
53.8mm |

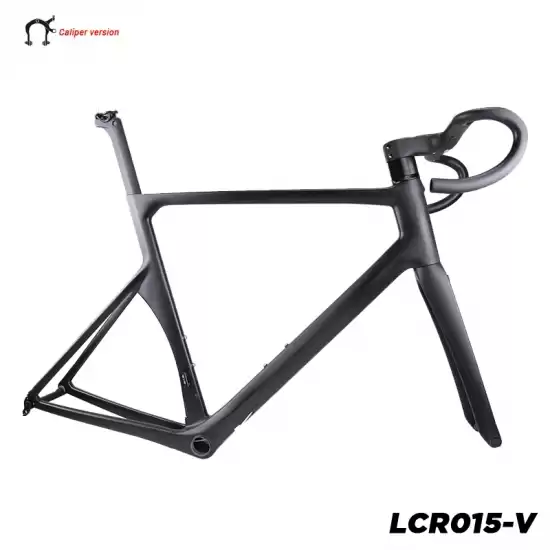

LCR015 rim brake version cable routing

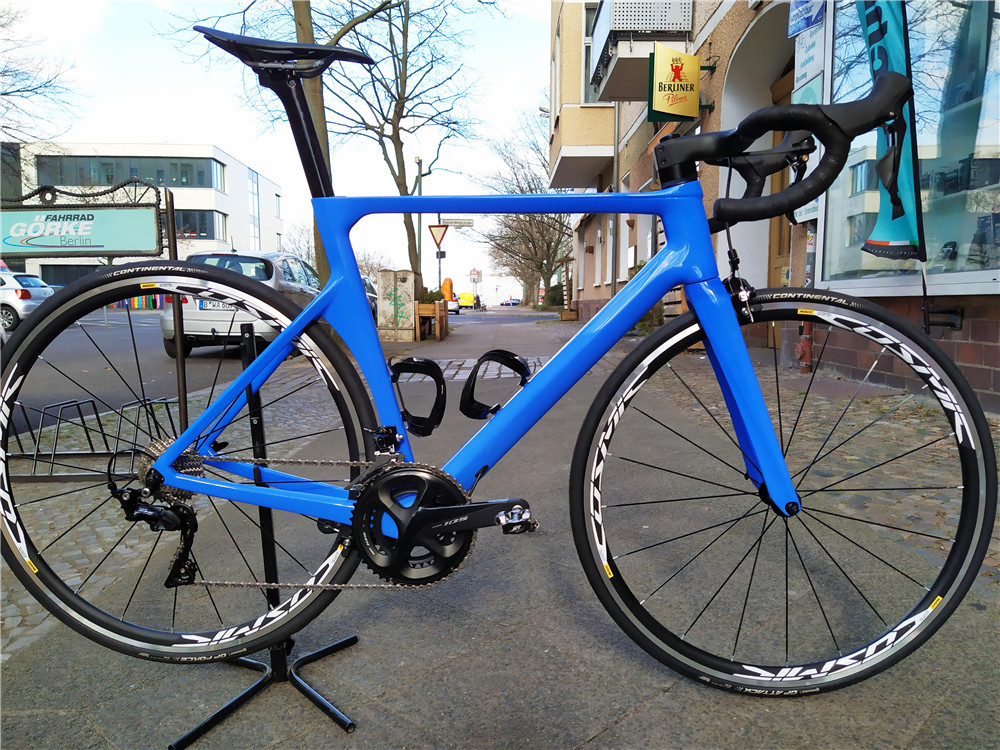

Complete bike photo show
