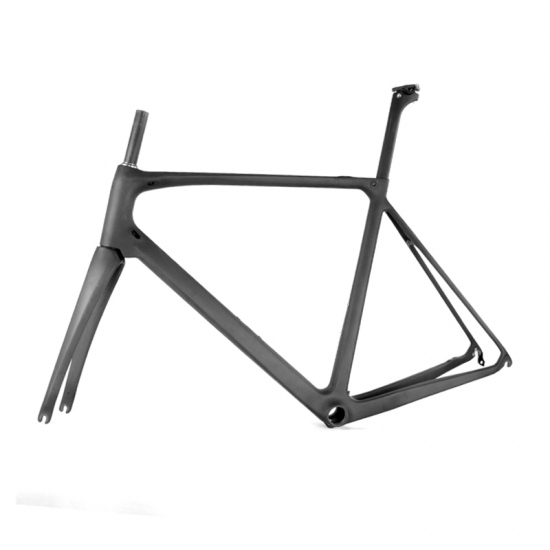

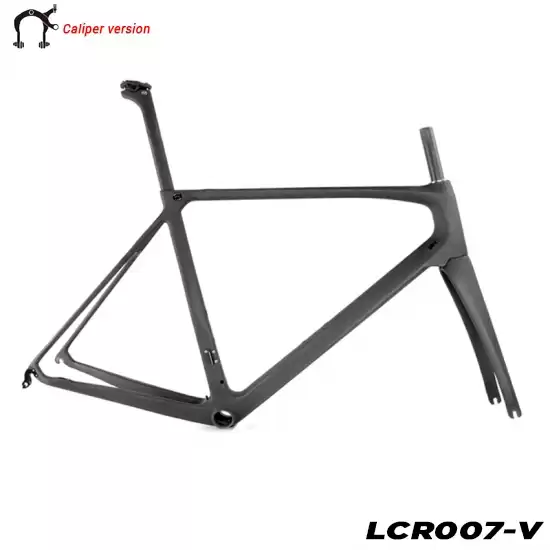

LightCarbon LCR007-V Super Light Carbon Road Frameset
|
Frame
|
LightCarbon super light carbon road frameset LCR007
|
|
Material
|
High modulus Toray T800+T1000 carbon fiber
|
|
Size
|
46, 49, 52, 54, 58 |
|
Fork
|
Lightcarbon specify carbon fork
|
|
Headtube
|
Tapered 1 1/8-1 1/2'' head tube
|
|
Weight
|
875g/52cm
|
|
Seatpost
|
Specify seat post off-set 15mm
|
|
Bottom bracket
|
Press fit BB86
|
|
Max tire clearance
|
700*25c
|
|
Brake mount type
|
Standard caliper brake
|
| Dropout |
Normal F9*100mm QR/R9*130mm QR |
| Groupset |
Machanical and Di2 compatible |
| Test Standard |
ISO4210 |
| Warranty |
2 years |

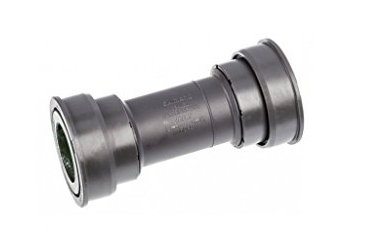

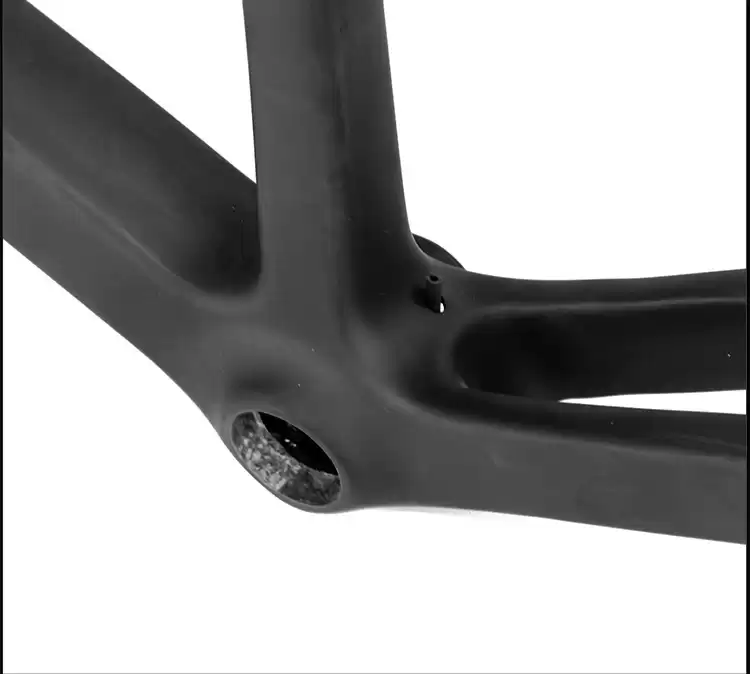

LCR007-v Frame fit the Press-fit BB86 Bottom Bracket
LCR007-V Chinese Road Frame Size chart and Geometry
| |
460 |
490 |
520 |
540 |
580 |
| SEATPOST INSERT LENGTH |
210mm |
240mm |
270mm |
300mm |
340mm |
| REACH |
367.5mm |
383.9mm |
394.5mm |
398.4mm |
398.3mm |
| TOP TUBE LENGTH, HORIZONTAL |
510mm |
535mm |
560mm |
575mm |
600mm |
| STACK |
513mm |
526mm |
558mm |
577mm |
620mm |
| WHEELBASE |
961mm |
972.8mm |
990.1mm |
998.8mm |
1011.5mm |
| CHAINSTAY LENGTH |
405mm |
405mm |
405mm |
405mm |
405mm |
| FRONT CENTER |
567.1mm |
578.7mm |
595mm |
600.1mm |
612.7mm |
| BB DROP |
72mm |
72mm |
69mm |
67mm |
67mm |
| BB HEIGHT |
267.8mm |
268mm |
270.9mm |
274mm |
272.9mm |
| SEAT TUBE ANGLE |
74.5° |
74° |
73.5° |
73° |
72° |
| HEAD TUBE ANGLE |
71.5° |
72.5° |
73° |
73.5° |
73.5° |
| SEAT TUBE LENGTH |
460mm |
490mm |
520mm |
540mm |
580mm |
| HEAD TUBE LENGTH |
108mm |
118mm |
153mm |
173mm |
218mm |
| BIKE STANDOVER HEIGHT(700C*25C) |
741.4mm |
759.9mm |
790.7mm |
809.8mm |
849mm |
| FORK RAKE/OFFSET |
45mm |
45mm |
45mm |
45mm |
45mm |
| FORK LENGTH, FULL |
372mm |
372mm |
372mm |
372mm |
372mm |
| TRAIL |
67mm |
61mm |
57mm |
54mm |
53.5mm |
