Solar Earthing Lug(or Solar Grounding Lug) is one member of our grounding family, it is designed to mount on the rail to holding ground wire. Earthing lug kit consists of tin plated earthing lug,specially designed washer,stainless steel bolt and pad, the sharp teeth on the washer are constructed to embed into anodized aluminum rail to create grounding path. Using with earthing clip, the earthing lug is easy to attached the copper ground wire,no need to run ground wire from every single module, it makes the earthing systems easy and simple.
The Structure of Earthing Lug

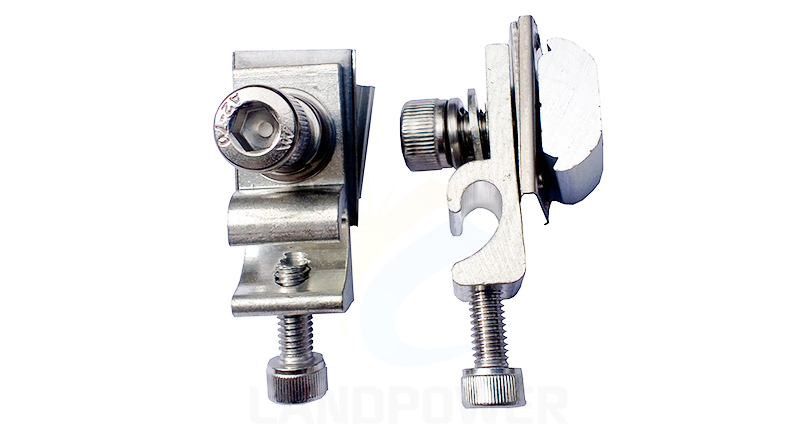

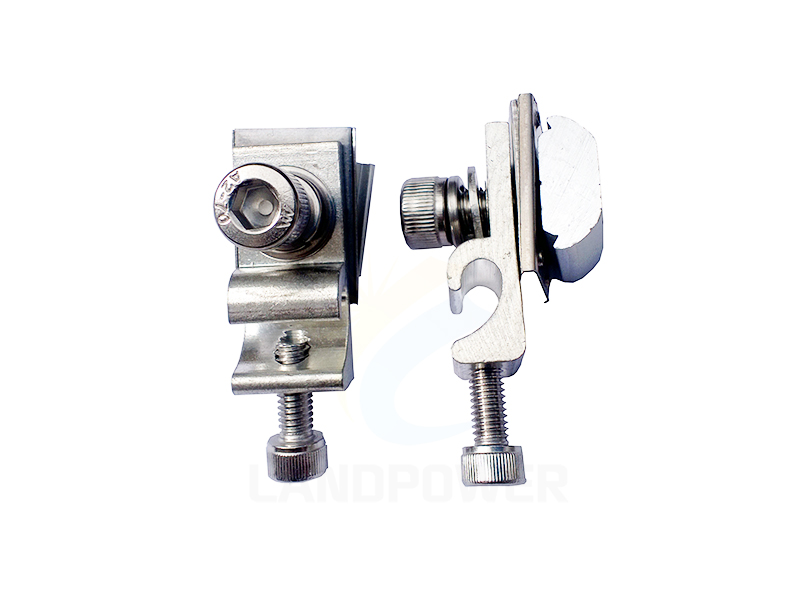

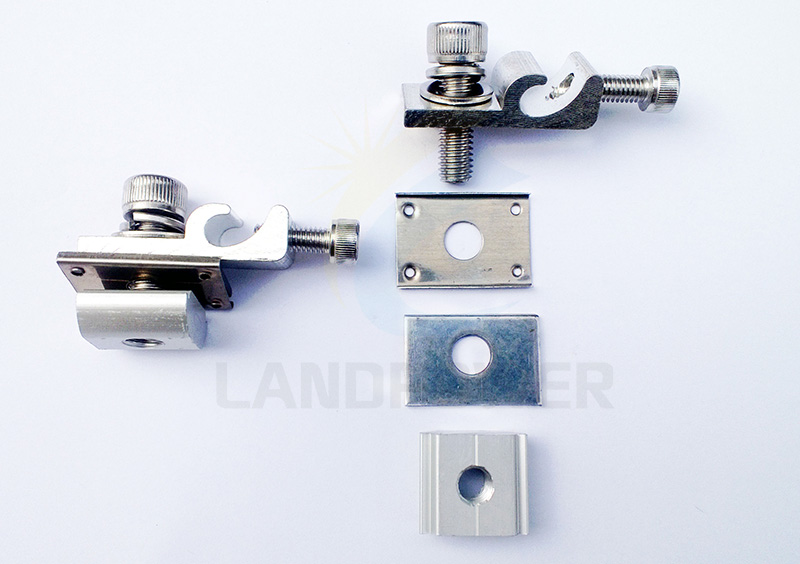

The whole Solar Earthing lug set is including washer, lay-in earthing lug, stainless steel bolt and stainless steel pad.
Solar Earthing Lug Application

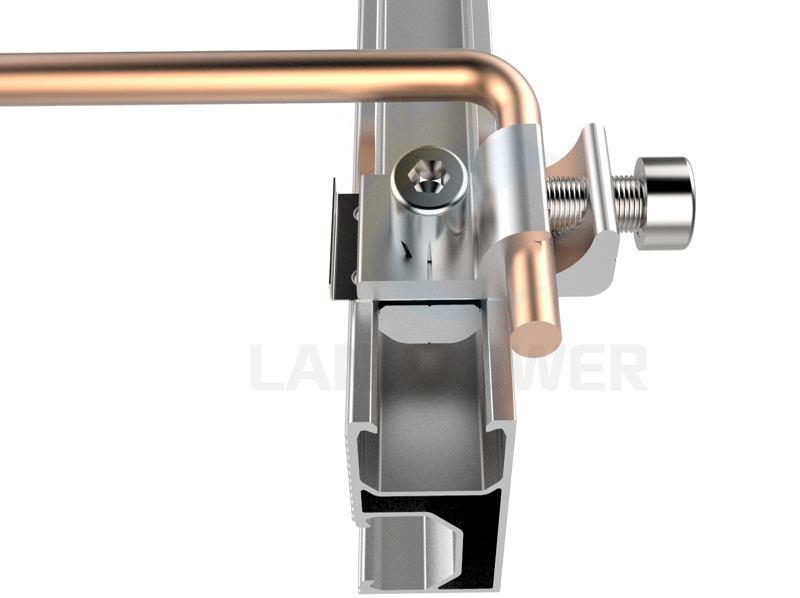

It is easy to make entire Solar PV Array Grounding, Just simply mount the earthing lug on the end of each mounting rail, then tighten the hex bolt. It will force washer teeth penetrate into the anodized mounting rail, the conductive grounding circle will be made!
Our Solar Earthing Systems family is including Solar PV Earthing Lug,Solar Earthing Clip,Bonding Jumper and Various Cable Clips. Please free feel to click here Solar Earthing Systems to learn more entire earthing system.
