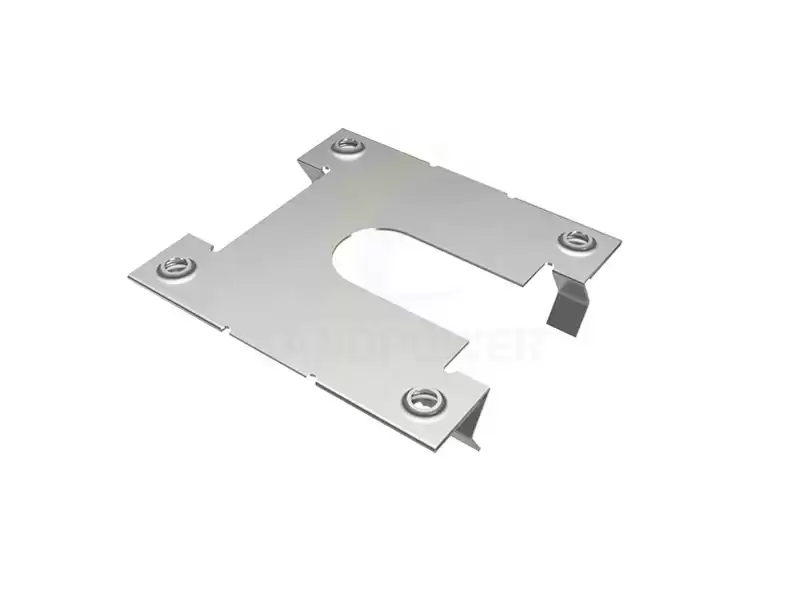

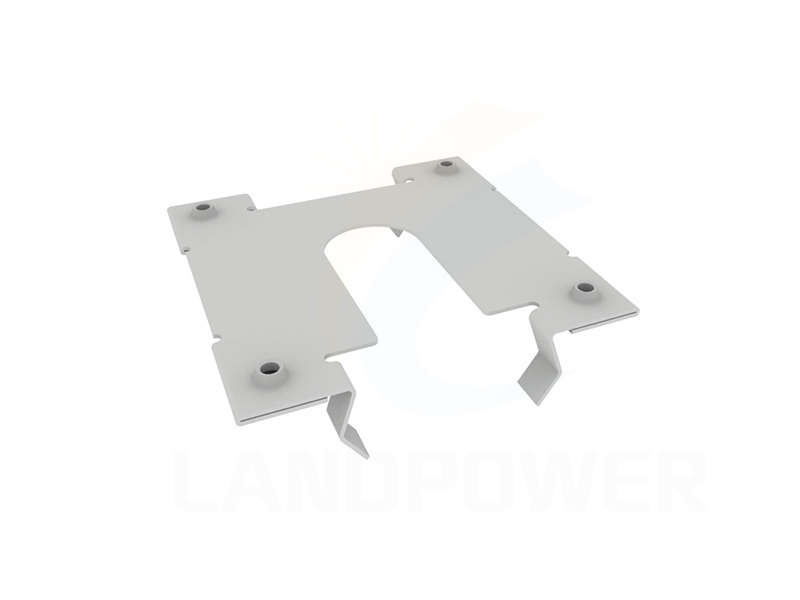

Solar Panel Earthing Clip(Grounding Clip) is design to penetrate the anodized films between solar mounting accessory and solar pv panel, which made the solar mounting conductive.There are ribs in four directions to penetrate anodized films to create grounding path through rail,which will make the solar system more save, it is necessary mounting component for solar pv system installation.

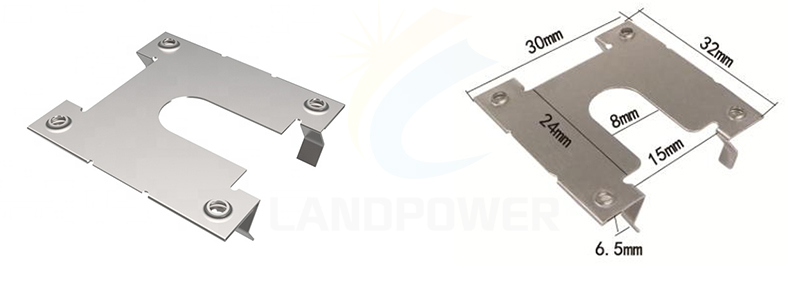

Solar Earthing Clip Dimension:
Solar Panel Earthing Clip Application:

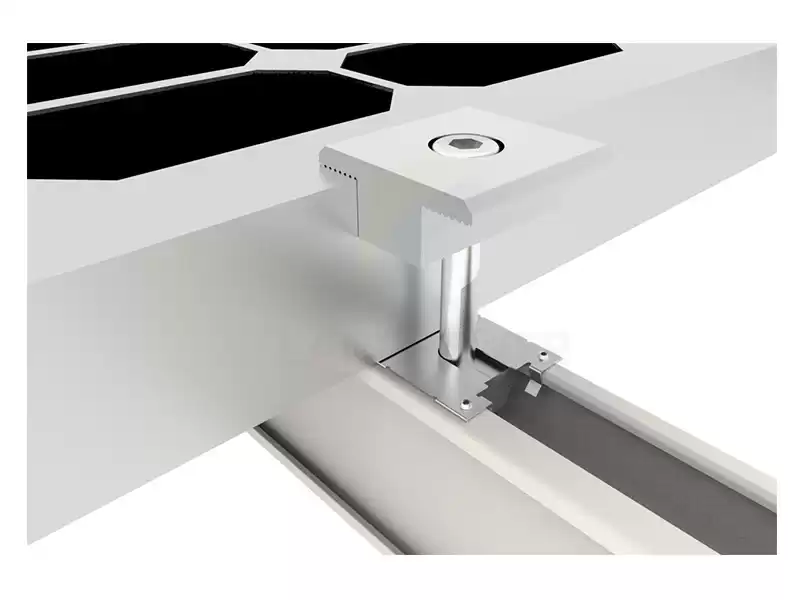

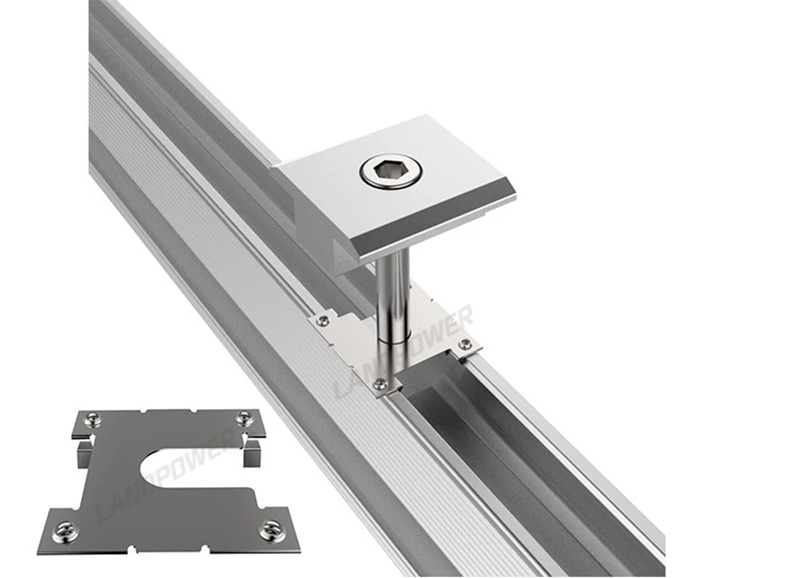

This Earthing Clip is used with mid clamp, it is forced to penetrate the anodized film when tighten the bolt on the mid clamp. The electrical earthing part is created.

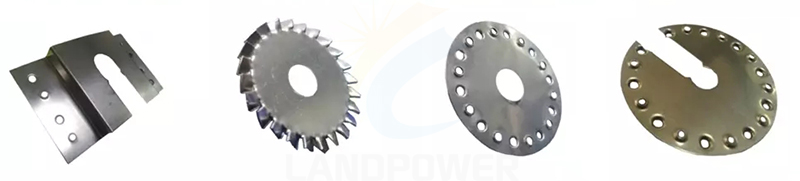

Various Earthing Clip Design:
We are keeping various solar mounting earthing clips for different usages,we also accept OEM service for different solar mounting rail.
|
ITEM NO.
|
DESCRIPTION
|
|
APPLICATION
|
|
LP-GC-01
|
Earthing Clip
( Stainless Steel 304)
|
|
Roof Rail,Ground Rail,Triangle Support, Roof Attachments and Mid Clamp etc.
|
|
LP-GC-02
|
|
|
LP-GC-03
|
|
|
LP-GC-04
|
|
|
LP-GC-05
|
|
We are engineering various earthing clips for solar mounting grounding system, normally it is used with Solar Earthing Lug, Bonding Jumper,cable clip and copper wire,please click there Solar Mounting Earthing Systems to learn more about mounting earthing systems.
